Immersion Reference Electrode Data Sheet

Typical Application:
Featuring:
  • Rugged 1 inch white PVC housing

    •
  • 20 year design life

    •
  • Optional magnetic mount for easy attachment to steel structure

  • Optional antifreeze protection to -70F

Product Drawing

Download Data Sheet



Housing Specifications
1 5/8 inch (4 cm) dia. x 10 ¾ inch (28 cm) long
Heavy duty strain relief at wire end
Shipping weight – 1 lb (½ kg)

 Termination
LWnnn nnn ft. #12 AWG RHW/USE
CWnnn nnn ft. of custom wire
Element Specifications
Design life 20 yrs.
Shelf life 1 yr. with end cap in place
Max. Temp. - +140F (60C)
Min. Temp. - + 10F (-12C)

Options

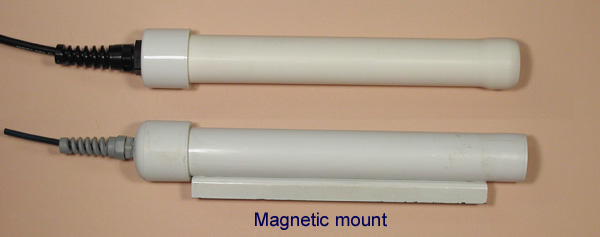

M - Magnetic mount
A - Antifreeze protection to -70F
S – ¾ IPS socket end

Element Types
AGG saturated gelled Ag/AgCl
CUG saturated gelled Cu/CuSO4

 Model Designation
Specify as EDI Model IRzz-xxx-yy
zz = Option code
xxx = Element type
yy = Termination type

Design Compatibility:
