Seawater Reference Electrode Data Sheet

    Typical Application

    • Portable use - intermittent potential measurements in seawater
    • Permanent use - piers, pilings, traveling screens, and other marine structures
    Featuring
    • Sized to join standard 1/2 inch PVC conduit or pipe fittings
    • Rugged white PVC housing
    • Ag/AgCl or Zn element for open seawater (marine) applications

Product Drawing

Attaching Drop Weights

Permanent Installation Options

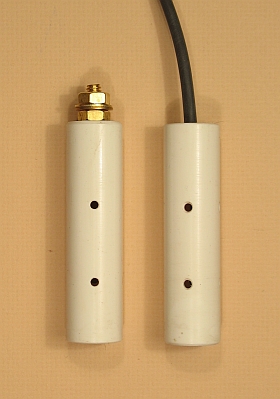

Wire Attachment to Stud End

Download Data Sheet



Housing Specifications
0.840 inch (21.3 cm) dia. at termination end
1.0 inch (2.5 cm) dia. x 3 1/4 inch (8.3 cm) long PVC
Shipping weight without wire - 1/2 lb (1/4 kg)
Element Type
AGD - dry-type Ag/AgCl
ZIN - 99.99% zinc
Termination
ST - 1/4-20 threaded stud
SW - 25 ft (7.5m). #18 AWG PVC insulated test lead
LWnnn - additional lead wire in 25 ft.increments
Model Designation
Specify as EDI Model IP-xxx-yy
xxx = Element type
yy = Termination type

Design Compatibility
The Model IP is a compact, economical, dry-type reference electrode for marine applications. It has a 0.840 inch (21.3 cm) diameter PVC bushing on the termination end. This enables the user to cement on any ½ inch socket-end PVC pipe or electrical conduit fitting (e.g. male or female conduit thread or couplings) for permanent installation. Examples of this are shown on EDI Drawing IPAPP2 where ½ inch PVC couplings serve as transition pieces for running the lead wire through conduit or attaching the electrode to a wall. For intermittent use, the Model IP has a blind 1/4-20 tapped hole for attaching up to a 5 lb (2 kg) weight. Should more weight than that be necessary, the electrode and the weight should be attached to a separate drop line as shown on EDI Drawing IPAPP1.
