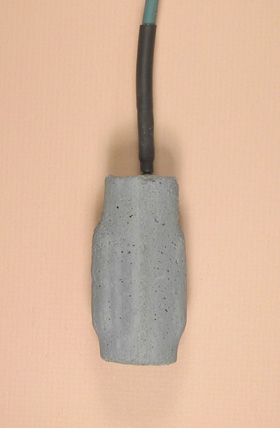

Marine Concrete Reference Data Sheet

Typical Application:

  • All marine concrete structures including seawalls, bridge pilings, piers and docks
Featuring:
  • Long term reliability with thermodynamically stable Ag/AgCl element
  • Proprietary grout surrounding the element provides low resistance coupling to concrete

Product Drawing

Download Data Sheet

Housing Specifications
1.25 inch (3.5 cm) dia. x
2.5 inch (6.5 cm) long
Shipping weight – 0.4 lb (0.25 kg)
Element Specifications
Design life – min. 30 yrs.
Shelf life 1 year minimum
Element Type
AGC Ag/AgCl for concrete
Termination
LWnnn nnn ft. of #14 AWG RHW/USE
Wire color – blue is standard;
other colors available
Model Designation
Specify as EDI Model CM AGC-LWnnn
nnn = Length of lead wire

Application Notes:
The Model CM is designed for use in seawater applications where the chloride level of the pore water is expected to remain nearly constant. It should be installed directly into the concrete as close as possible to the rebar where measurements are to be taken. Allow 60 days from the date of installation for the electrode to equilibrate to its surroundings. Subsequently, the Model CM will remain stable.
For those applications where the environmental conditions are expected to vary, or for concrete in fresh or brackish water, the Model CB-AGG should be used.
