Undertank Anode Installation

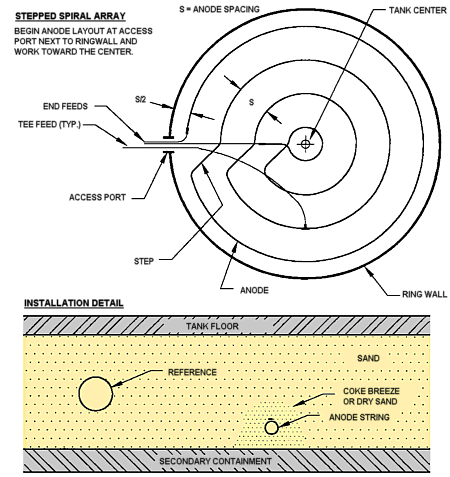

Anodes can be interconnected to form either one continuous string or several discrete strings. Lead wires are to be connected to both ends of anode strings. The Tee End Lead Wire is used to provide intermediate power feeds. Distance between power feeds must not exceed 1,000 feet on single wire anodes.
To ensure optimum anode performance, anode should be covered with calcined petroleum coke or fine dry sand. Make sure the material filters through the poly mesh and completely encapsulates the anode.
