AT Anode Branch and End Plugs

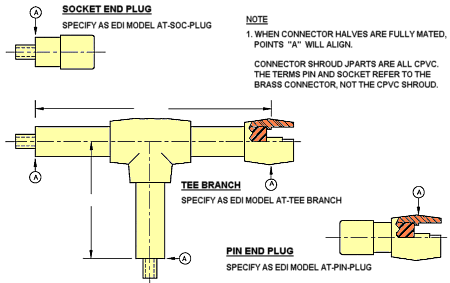

Tee branches and end plugs are used to make short side branches in a linear anode arrray. Use an end lead wire rather than an end plug to increase circuit redundancy. Refer to Layout Concepts for linear anode array concepts.
