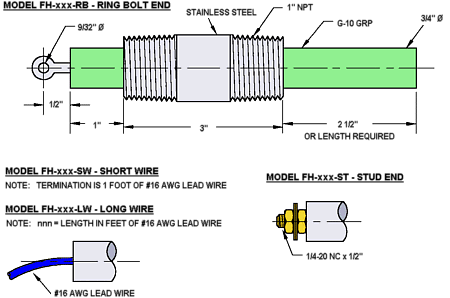

Heavy Duty Through Wall Reference
Notes:
xxx in model designation refers to element type:
AGG = Ag/AgCl (saturated, gelled)
CUG = Cu/CuSO
4
(saturated, gelled)
ZIN = 99.99% zinc
